Guides - Add Cloud Firewall Rules
A free cloud-based firewall service that can be used to secure any Linode Compute Instance, allowing network traffic only on the specified ports, protocols, and IP addresses.
Log in to the Cloud Manager and select Firewalls from the navigation menu.
From the Firewalls listing page, click on the Firewall that you would like to add new rules to. This takes you to the Firewall’s Rules page.

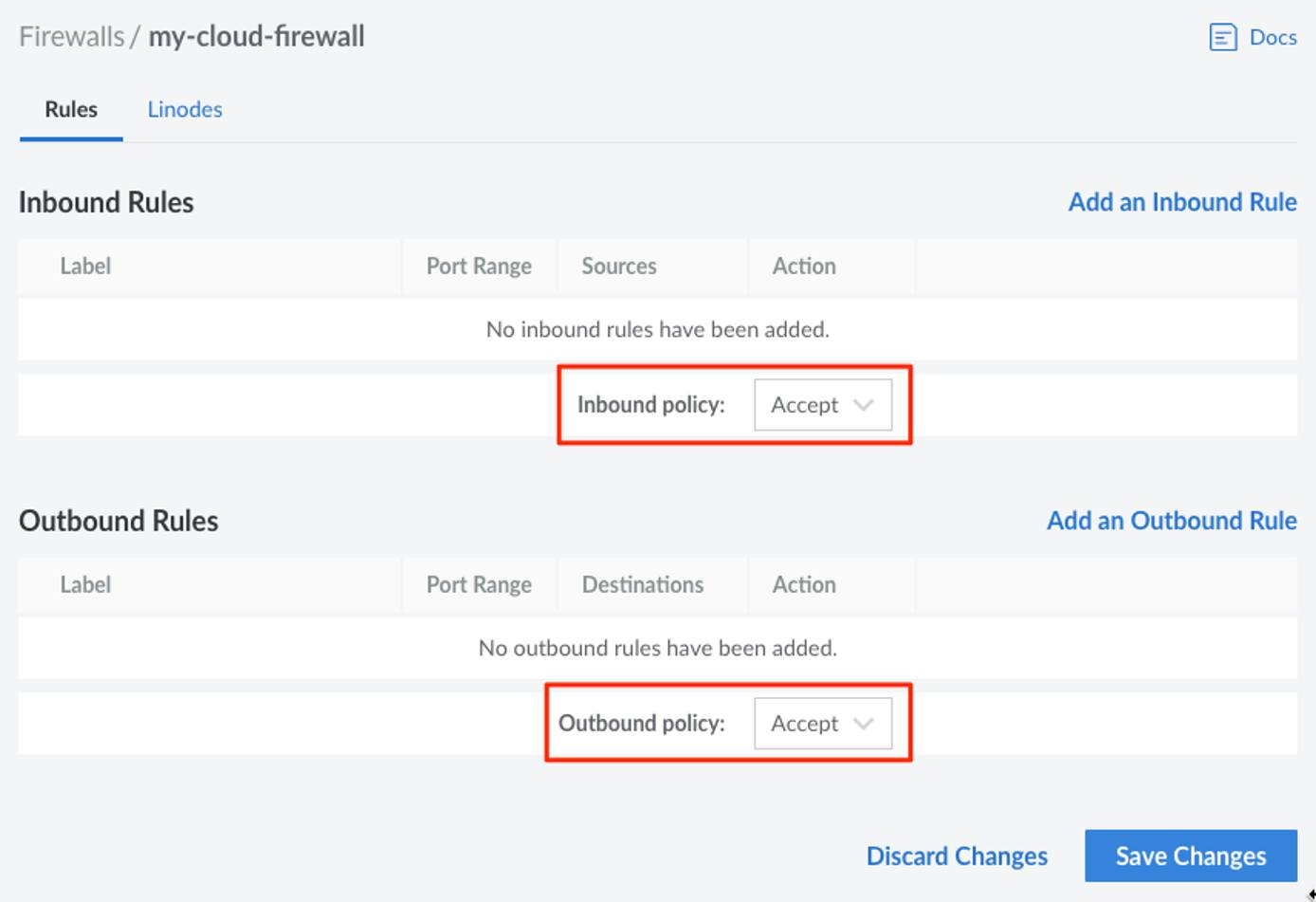

On the Rules page, select the default behavior for both inbound and outbound traffic using the Inbound Policy and Outbound Policy dropdown menus. Accept will allow all traffic except for those defined in the listed rules, and Drop will drop or deny all traffic except for those defined in the rules.

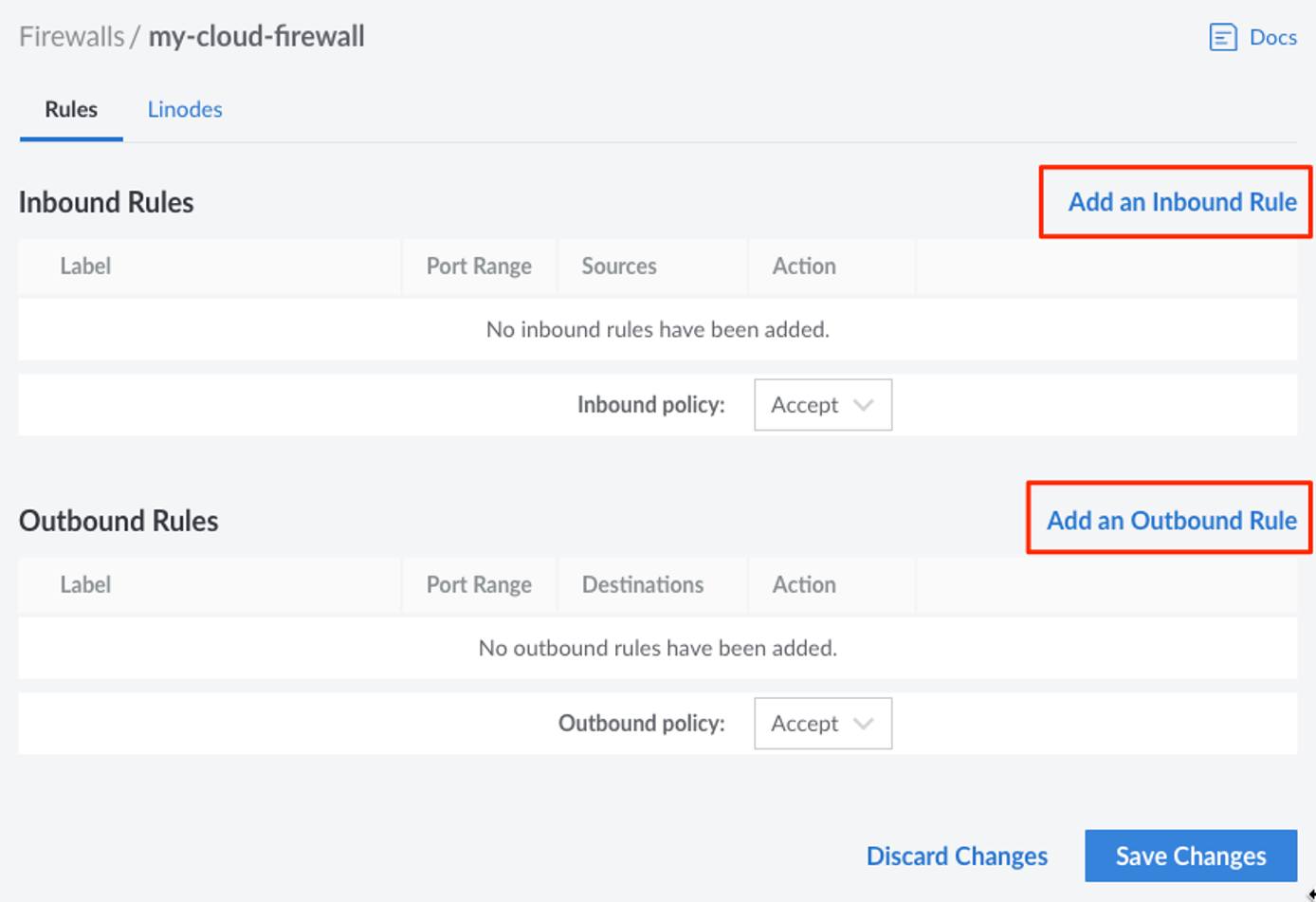

Click on the Add an Inbound/Outbound Rule link (click on the appropriate link for the type of Rule you would like to add).
The Add an Inbound/Outbound Rule drawer appears.
Provide the following Rule configurations:
Configuration Description Preset Select from a list of optional predefined Firewall rules. Selecting a predefined rule fills in the remaining Rule configuration values, however, they can all be edited. Optional Label A label for the rule being created. This is used only as an identifier for the Linode Account holder, and does not have any impact on firewall performance. Optional Description A Description of the rule being created. This is used only as an identifier for the Linode Account holder, and does not have any impact on firewall performance. Optional Protocol Select the Transport Layer protocol to use for this Firewall rule. Required Ports Select from a list of common port numbers, or select Custom to open the Custom Port Range configuration option. Up to 15 ports (and port ranges) can be added to a single Cloud Firewall rule. Port numbers must be within 1 and 65535 and they cannot contain leading zeroes. Required for TCP and UDP protocols but not allowed for the ICMP protocol. Custom Port Range Provide a port number or a range of ports on which to take action. Multiple ports or ranges can be added by separating each port or range with a comma ( ,). To configure a Port Range, enter the starting port and ending port numbers separated by a dash (-). For example, here is an example value that applies the rule to ports 21, 993, 995, and 2000-3000:21,993,995,2000-3000. OptionalSources Required for Inbound rules only. Select from a list of Sources that limit incoming connections to the chosen internet protocol, netmask, or specific IP address(es) and ranges. Destinations Required for Outbound rules only. Select from a list of Destinations that limit the outgoing connections to the chosen internet protocol, netmask, or specific IP address(es) and ranges. Action Choose whether this rule will be to allow or drop traffic. The action defined in specific rules will take precedence over the default inbound and outbound traffic policy. Required Note
When applying individual IP addresses or IP ranges to either the
sourceordestinationfield, the addresses must always be valid and formatted correctly. An example valid IPv4 and IPv6 range is as follows:139.144.0.0/162001:db8:1234::/48
As of the time of this writing, if an IP address or range is invalid, users will be unable to Save Changes after reviewing new firewall rules, and no error message will appear. Users should ensure that all IP addresses and Ranges are valid and formatted correctly should they encounter this issue.
Click on Add Rule to add the new rule to this Firewall. If you would like to add any additional rules, repeat the process outlined in this section.

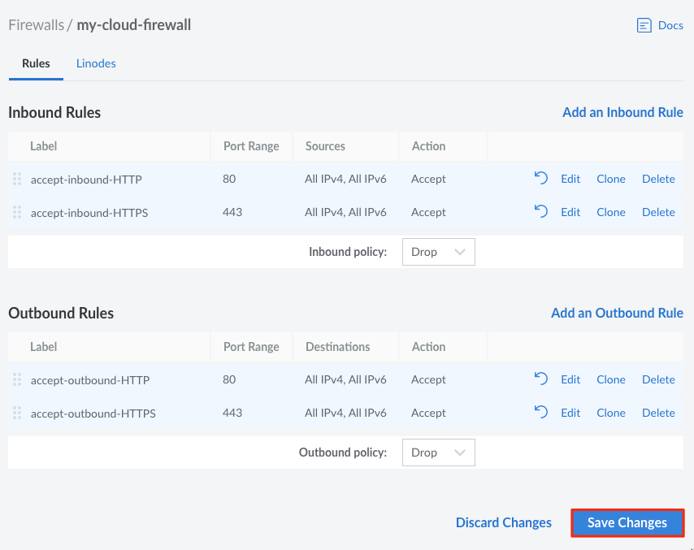

When you are done adding new Firewall rules, review them on the Rules page you are redirected to by default. Firewall rules are applied in order from top to bottom as they appear on this page. If you would like to re-order these rules, drag and drop any row into their desired position.
When you are done reviewing the new Firewall rules, click on the Save Changes button on the Rules page.
Note
Any newly added rules do not take effect until you Save Changes to the Firewall.
