Connect Metabase with MySQL for Data Exploration

What is Metabase

Metabase provides an interface to query data on your browser. In addition to supporting SQL querying, Metabase offers functionality to analyze data without SQL, create dashboards, and track metrics. This guide shows how to connect MySQL to Metabase then deploy on NGINX through a reverse proxy.

There are a number of additional databases that are supported from SQLite to PostgreSQL. Visualizing results become very simple through an intuitive interface. This makes Metabase versatile for sharing data even among those without an analytical background.

Install Metabase

Java Runtime Environment

The steps in this section will install the Java 8 JDK on Ubuntu 16.04. For other distributions, see the official docs.

1. Install software-properties-common to easily add new repositories:

   sudo apt-get install software-properties-common


2. Add the Java PPA:

   sudo add-apt-repository ppa:webupd8team/java


3. Update the source list:

   sudo apt-get update


4. Install the Java JDK 8:

   sudo apt-get install oracle-java8-installer


MySQL Server

1. Download MySQL Server. Enter a root password when specified:

   sudo apt install mysql-server


2. Log in as the root user:

   mysql -u root -p


3. Create a database and user for Metabase:

   CREATE DATABASE employees;
   CREATE USER 'metabase_user' IDENTIFIED BY 'password';
   GRANT ALL PRIVILEGES ON employees.* TO 'metabase_user';
   GRANT RELOAD ON *.* TO 'metabase_user';
   FLUSH PRIVILEGES;
   quit


Download Metabase

1. Download the jar file from Metabase:

   wget http://downloads.metabase.com/v0.28.1/metabase.jar


2. Move the file into /var so that it can start on reboot:

   sudo mv metabase.jar /var/metabase.jar


Reverse Proxy with NGINX

1. Install NGINX

   sudo apt install nginx


2. Create a new NGINX configuration file with the settings below setting server_name with your FDQN or public IP address:

   File: /etc/nginx/conf.d/metabase.conf

   1 2 3 4 5 6 7 8 9 10 11 12 13 14

   server { listen 80; listen [::]:80; server_name _; location / { proxy_pass http://localhost:3000/; proxy_redirect http://localhost:3000/ $scheme://$host/; proxy_http_version 1.1; proxy_set_header Upgrade $http_upgrade; proxy_set_header Connection "Upgrade"; } }

3. Verify there are no issues with the configuration:

   sudo nginx -t


4. Restart NGINX:

   sudo systemctl restart nginx


Download Example MySQL Database

The Employees Testing Database is an example database that can be loaded into MySQL. The database consists of employee and salary data with over 2.8 million entries, this size makes it useful for experimenting in a non-trivial way.

1. Install git:

   sudo apt install git


2. Clone the repository containing the test database:

   git clone https://github.com/datacharmer/test_db.git


3. Navigate into the cloned repository:

   cd test_db


4. Load employees.sql into the metabase_example database and enter the database user password when prompted:

   mysql -u metabase_user -p employees < employees.sql


   The console will print out the tables that are loaded as well as total time to complete.

   Enter password:
   INFO
   CREATING DATABASE STRUCTURE
   INFO
   storage engine: InnoDB
   INFO
   LOADING departments
   INFO
   LOADING employees
   INFO
   LOADING dept_emp
   INFO
   LOADING dept_manager
   INFO
   LOADING titles
   INFO
   LOADING salaries
   data_load_time_diff
   00:00:52

Environment Variables

1. Create a new text file containing the environment variables for Metabase:

   File: metabase-env

   1 2 3 4 5 6

   export MB_DB_TYPE=mysql export MB_DB_DBNAME=employees export MB_DB_PORT=3306 export MB_DB_USER=metabase_user export MB_DB_PASS=password export MB_DB_HOST=localhost

2. Load these environment variables:

   source metabase-env


Set Metabase to Start at Reboot

1. Check the path of your JDK binary:

   which java


   This should print a path such as /usr/bin/java.

2. Create a systemd configuration file to ensure Metabase runs on start up. ExecStart= should set to the JDK path from above. Be sure to replace User with your Unix username:

   File: /etc/systemd/system/metabase.service

   [Unit]
   Description=Metabase server
   After=syslog.target
   After=network.target[Service]
   User=username
   Type=simple

   [Service]
   ExecStart=/usr/bin/java -jar /var/metabase.jar
   Restart=always
   StandardOutput=syslog
   StandardError=syslog
   SyslogIdentifier=metabase

   [Install]
   WantedBy=multi-user.target

3. Apply the changes:

   sudo systemctl start metabase


4. Check that Metabase is active:

   sudo systemctl status metabase


Firewall Rules

Note

Linode’s free Cloud Firewall service can be used to replace or supplement internal firewall configuration. For more information on Cloud Firewalls, see our Getting Started with Cloud Firewalls guide. For help with solving general firewall issues, see the Troubleshooting Firewalls guide.

UFW is great for preventing unauthorized access to your database. A reasonable default is to allow port 80/443 and SSH:

sudo ufw allow http
sudo ufw allow https
sudo ufw allow ssh
sudo ufw enable

Check the firewall rules:

sudo ufw status

Metabase Interface

Metabase is now accessible on the browser on your Linode’s public IP address.

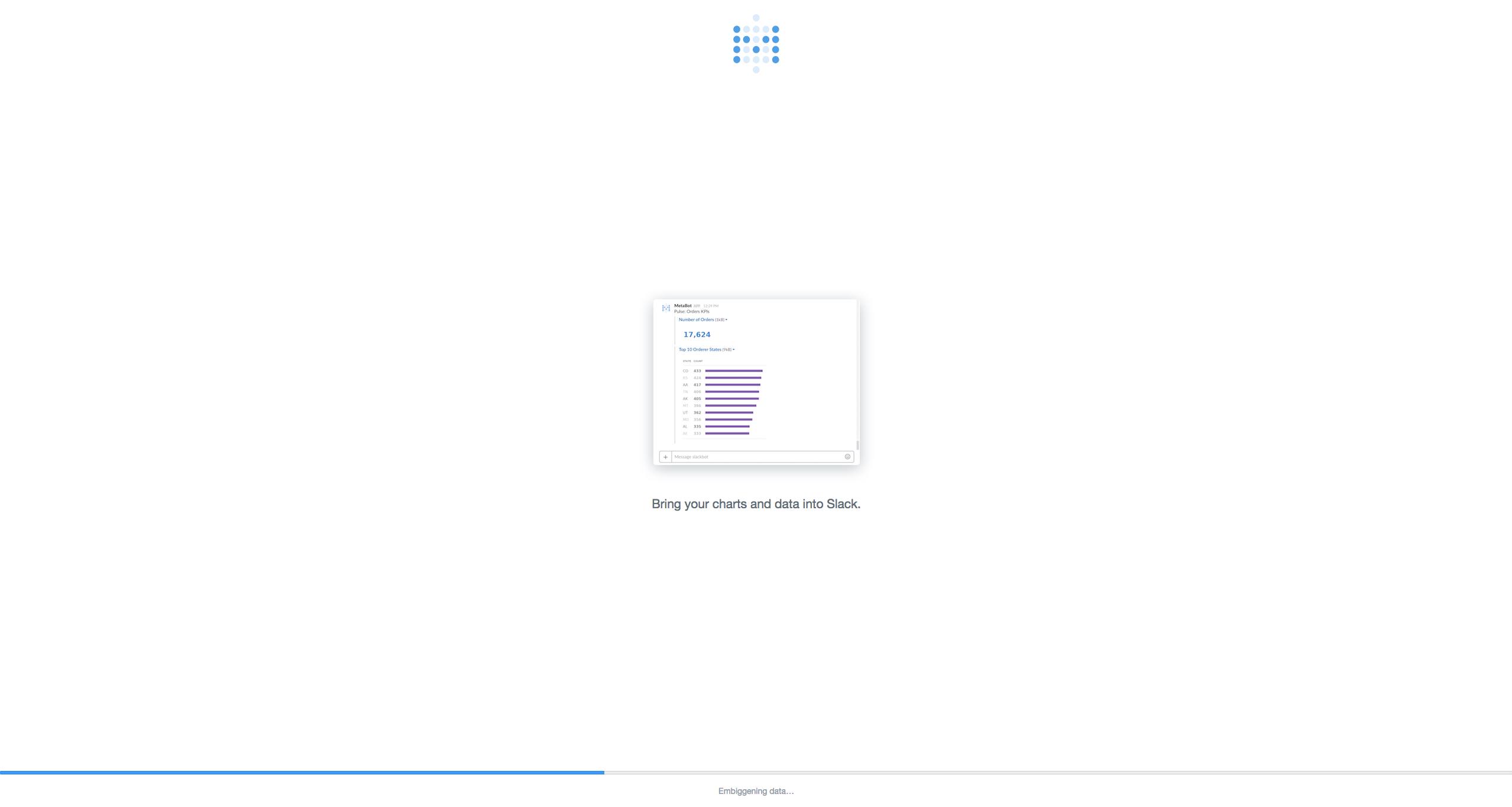

1. The first time you try to access, it will take some time because the MySQL database needs to migrate:

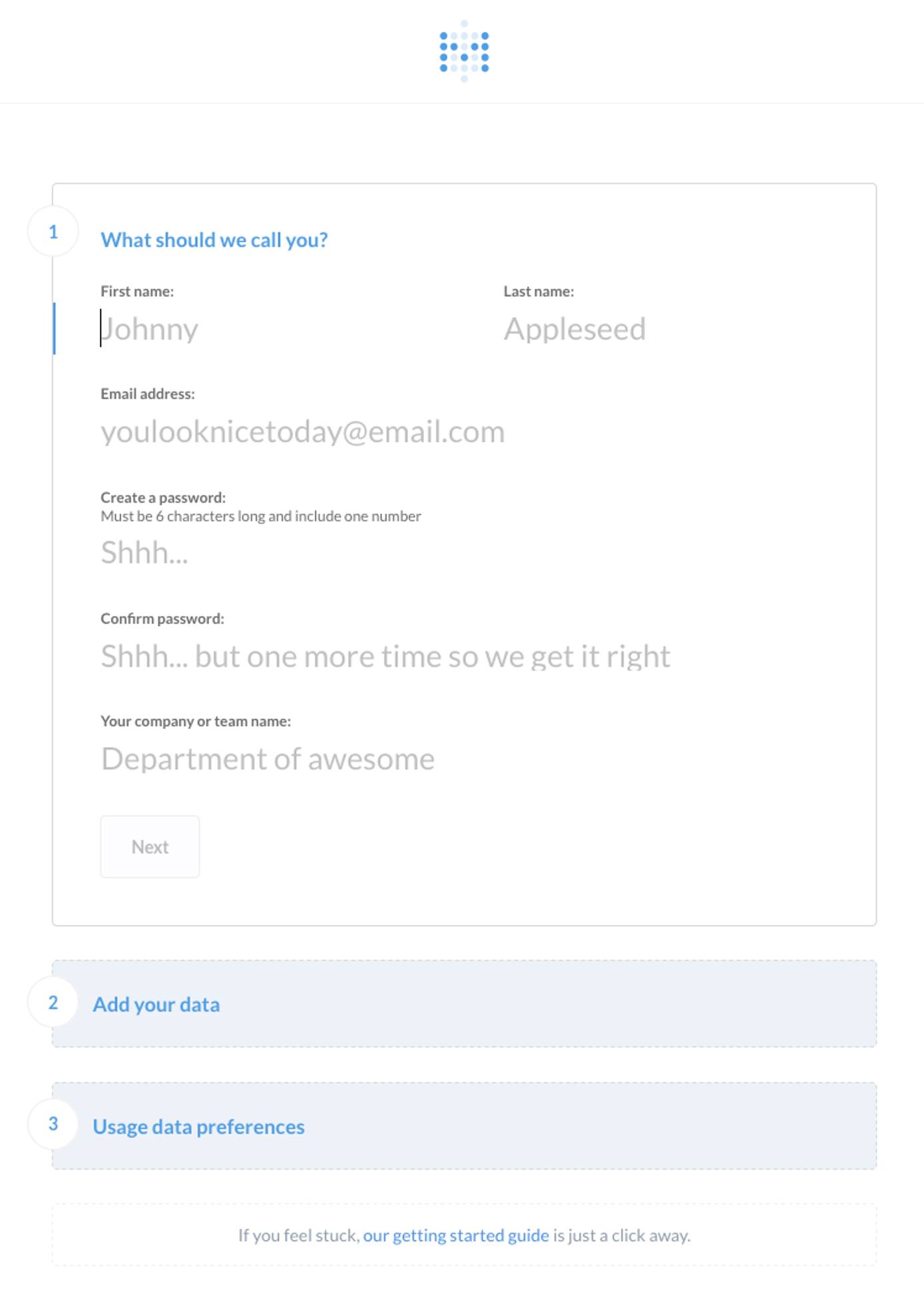

2. Create an account:

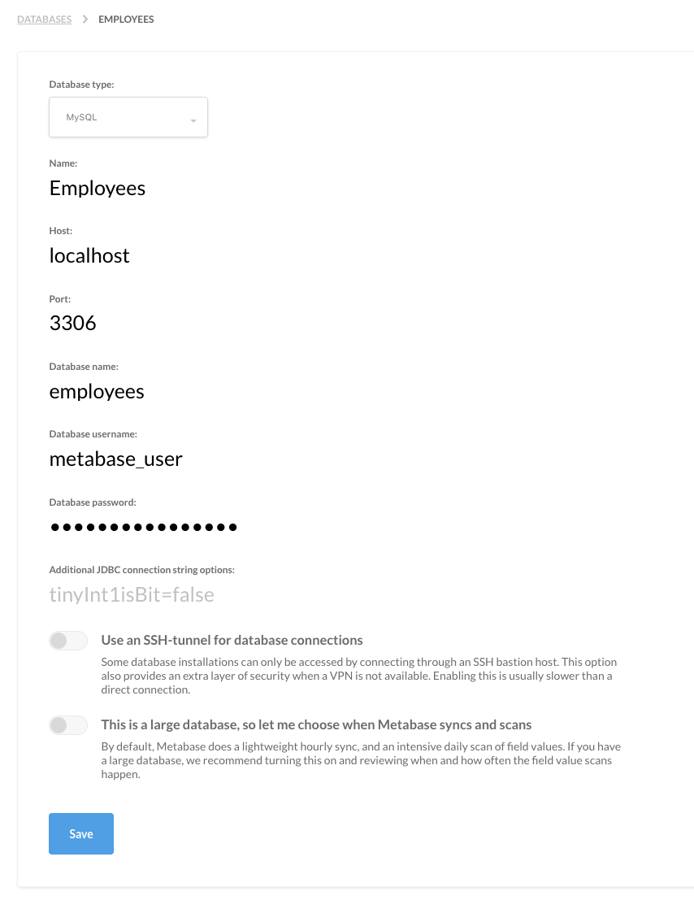

3. Enter the database information or skip this then add the information later from the Admin Panel:

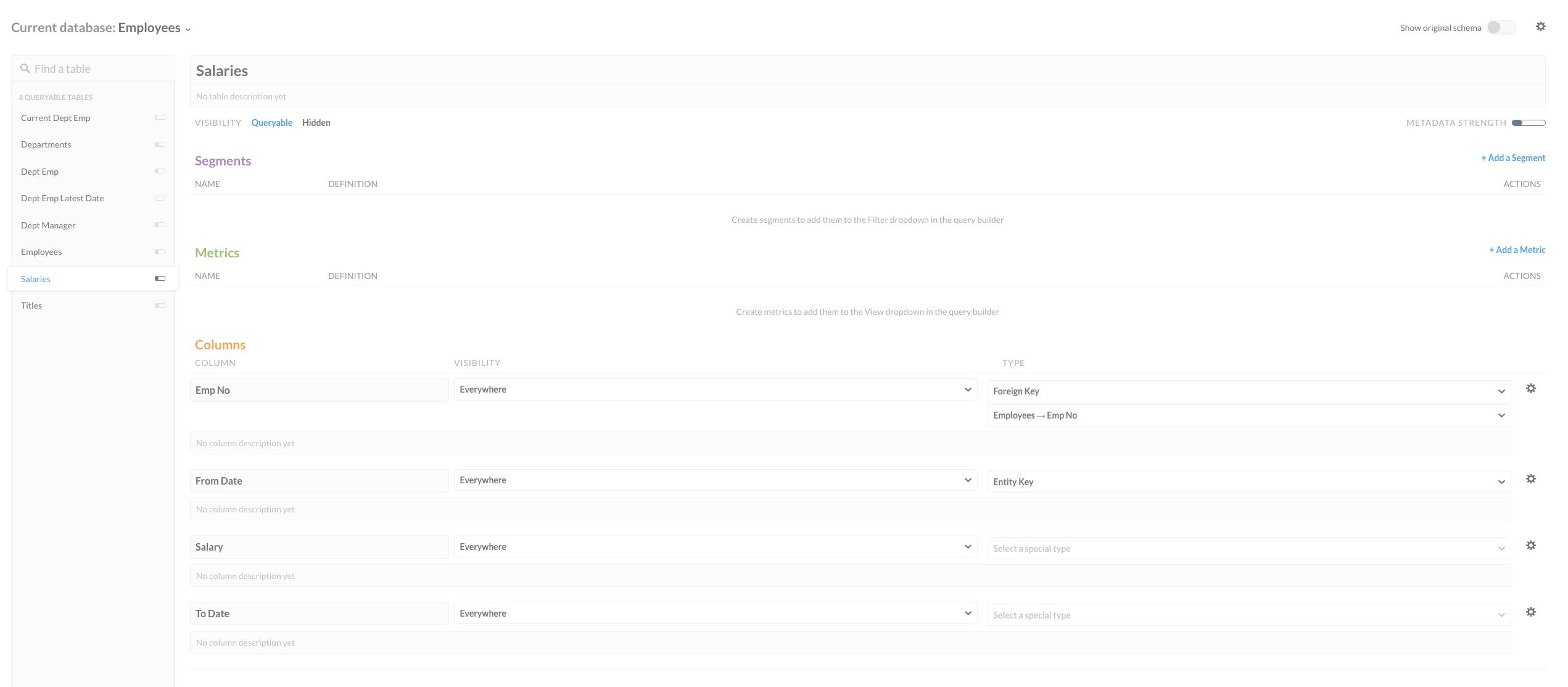

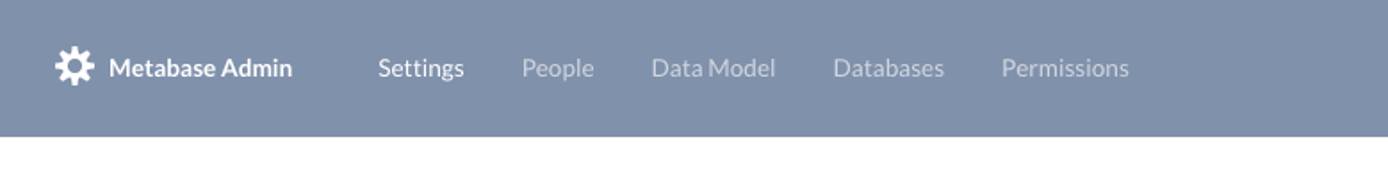

4. From the top right drop down menu, select Admin Panel then click Data Model on the top menu.

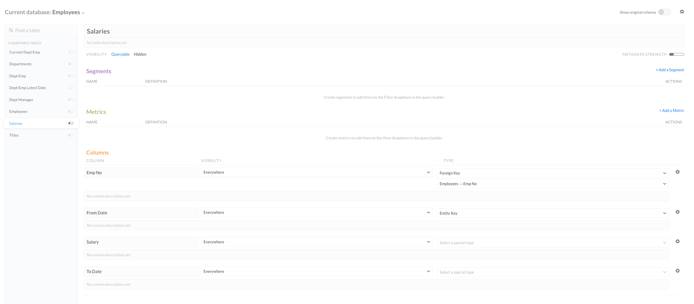

5. On the left, select salaries to see information about the table, such as foreign keys and column names. Click Add a Segment:

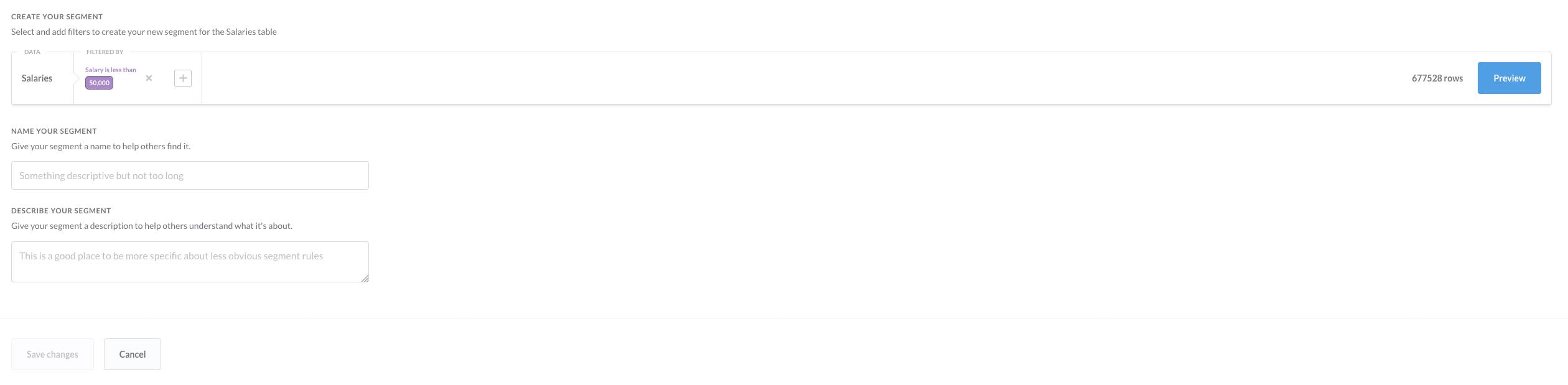

6. Create a filter to view all employees with a salary greater than $50,000 (Metabase allows you to create this filter without writing SQL):

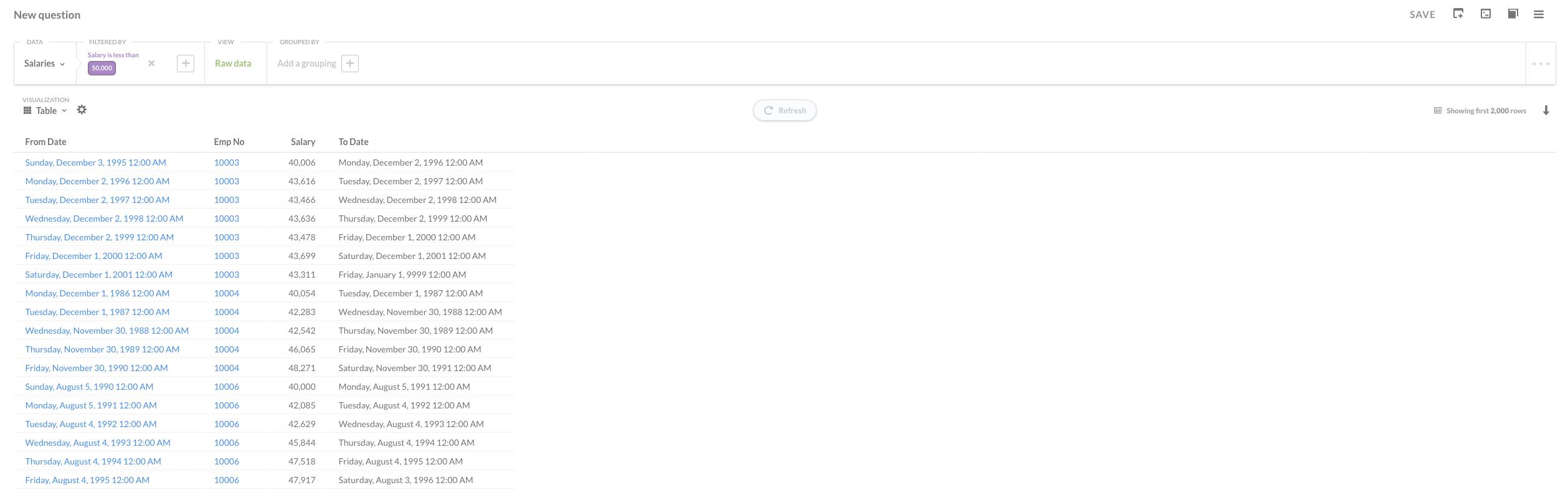

7. See the results:

Metabase has much more functionality you can explore. Refer to the official documentation for other use cases with Metabase.
